Custom Commercial And Industrial Energy Storage System BESS 60-80 Company, Manufacturers

Commercial and Industrial

Energy Storage System

BESS 60-80

60KW/80KWH

Support self-generation

micro-grid application
Support with EMS system
local control
Modular design

easy to maintain and expand
Multiple protection for
safer use
Supports cloud operation
and maintenance

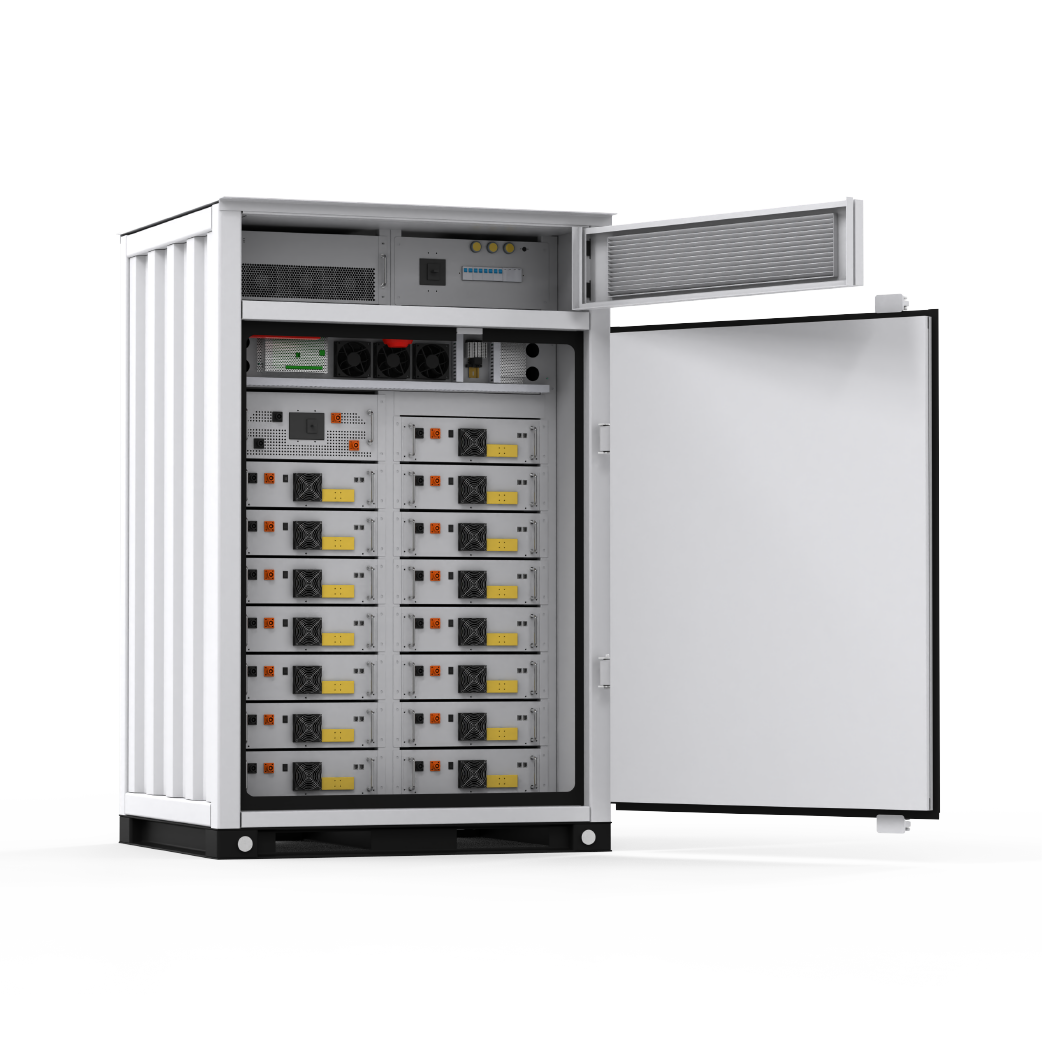

● All-in-one design with a high degree of integration ● Modular design with optional modules of different sizes

● Support for grid-connected and off-grid operation ● IP54 class fire and explosion-proof housing

● Patented air duct design, intelligent air cooling, 3-5°C temperature difference of the battery core

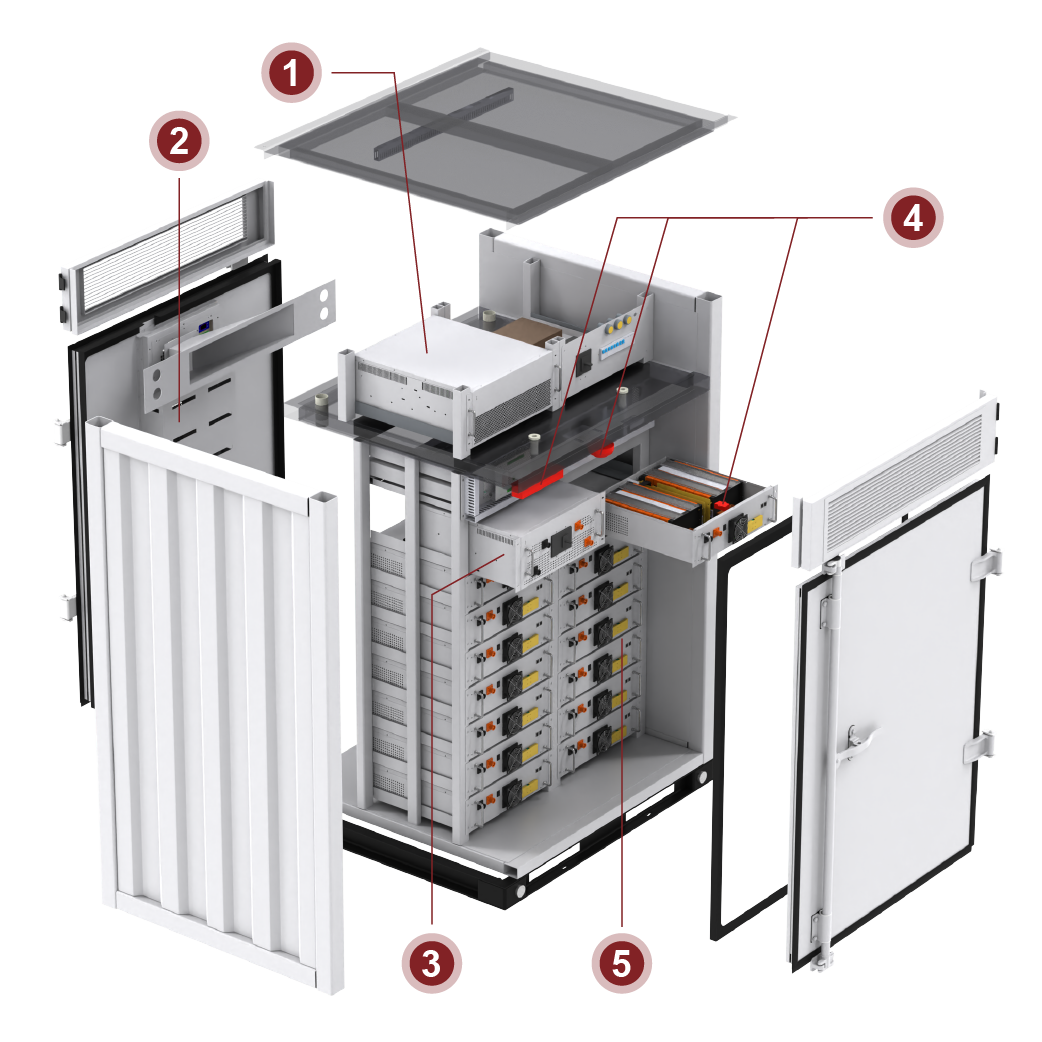

UP-M Power Conversion Module

Air conditioning module

BCU Battery Control Unit

Fire control module

LiFePO4 Battery Pack

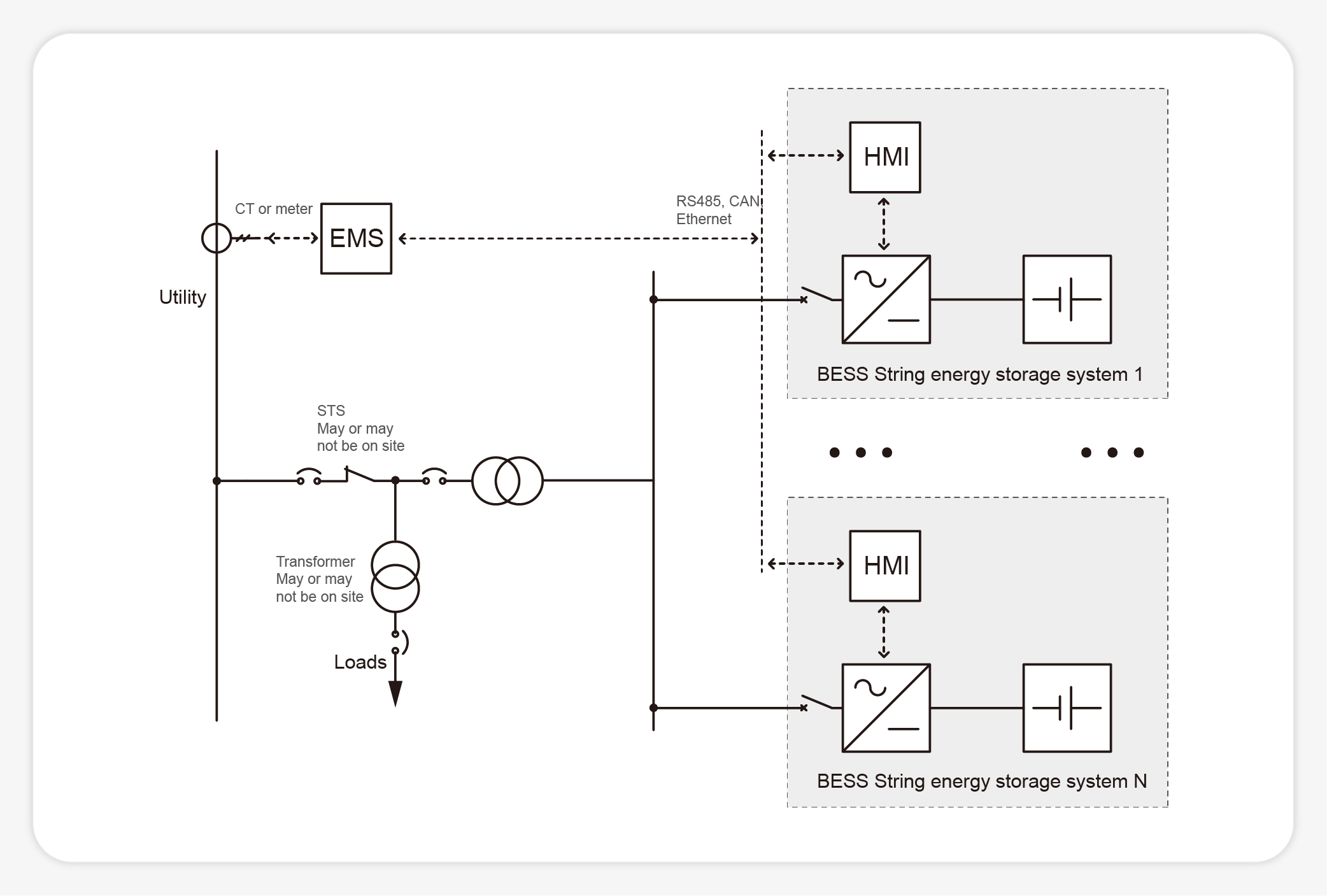

System topology

BESS SERIES

BESS series string energy storage unit is integrated with PCS modular, lithium battery packs, solar controller modular (optional), BMS, BCU, EMS, AC conditioner, fire protection systems in a high protected IP54 outdoor cabinet. Units can be paralleled to expand power upto megawatts, offering flexible user configuration and deploying energy storage systems at different points in the grid to support services such as emergency power, new energy stabilization, energy shifting,load shaving, grid stabilization and frequency regulation.
