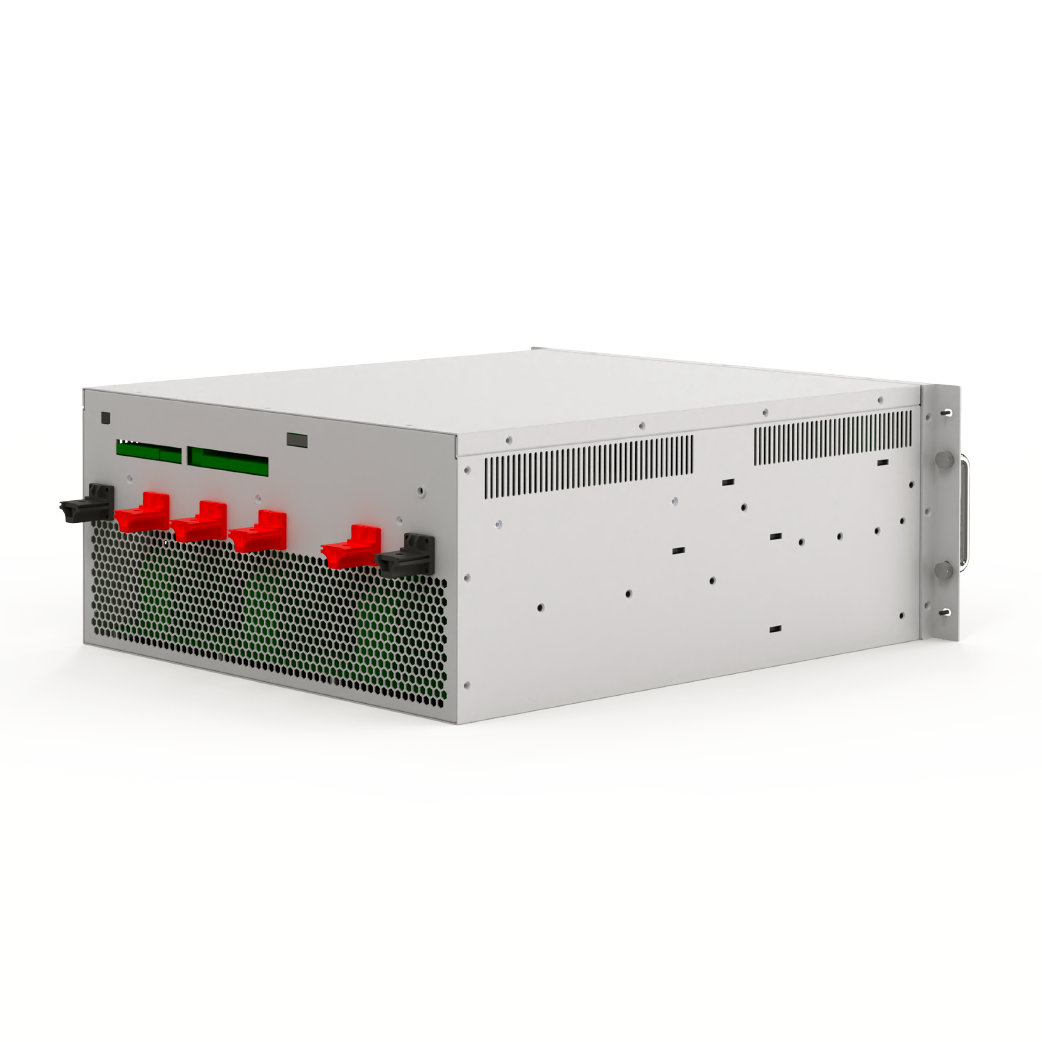

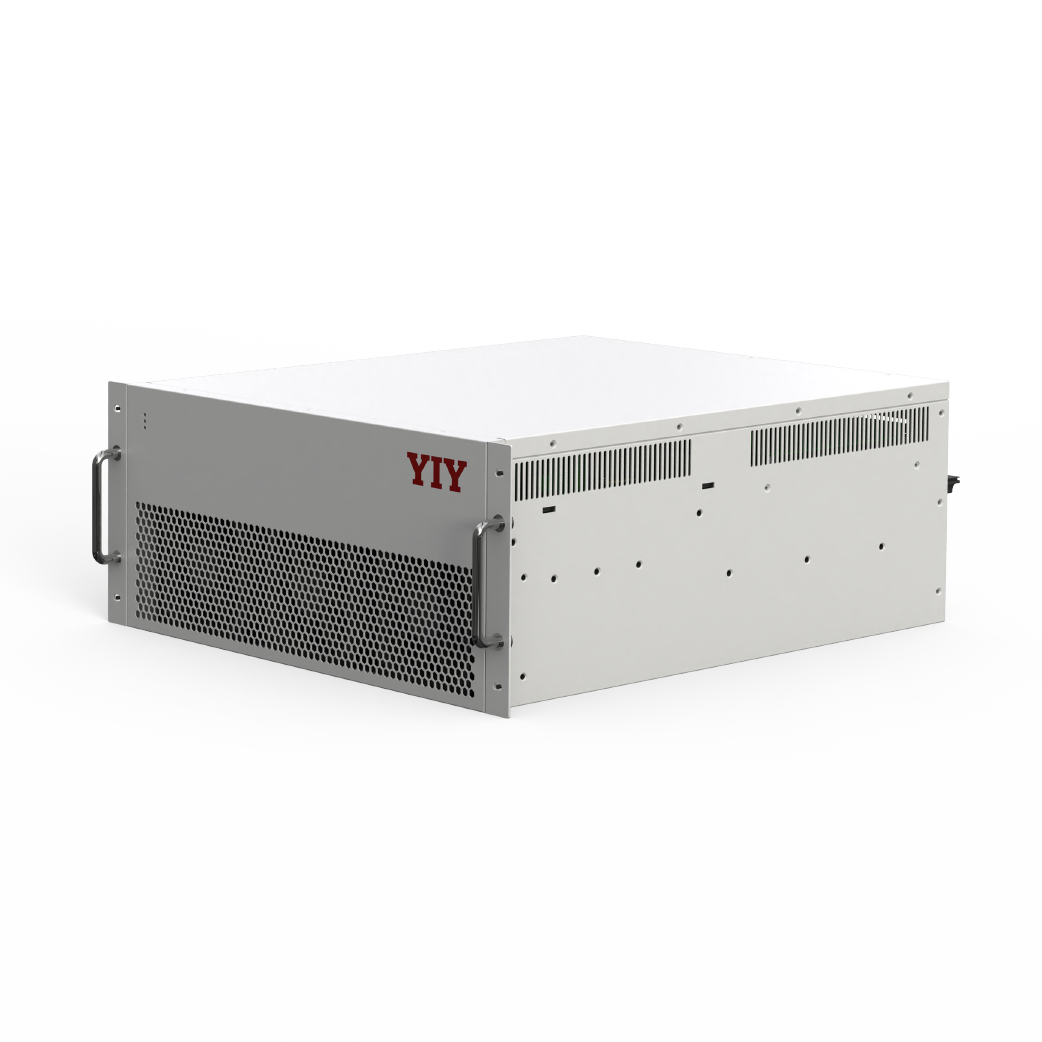

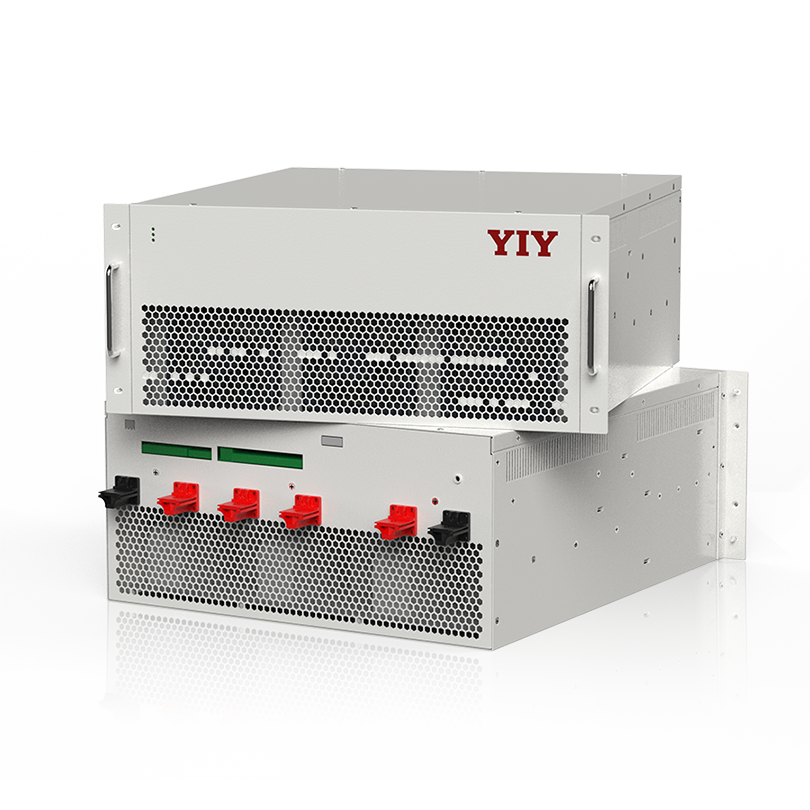

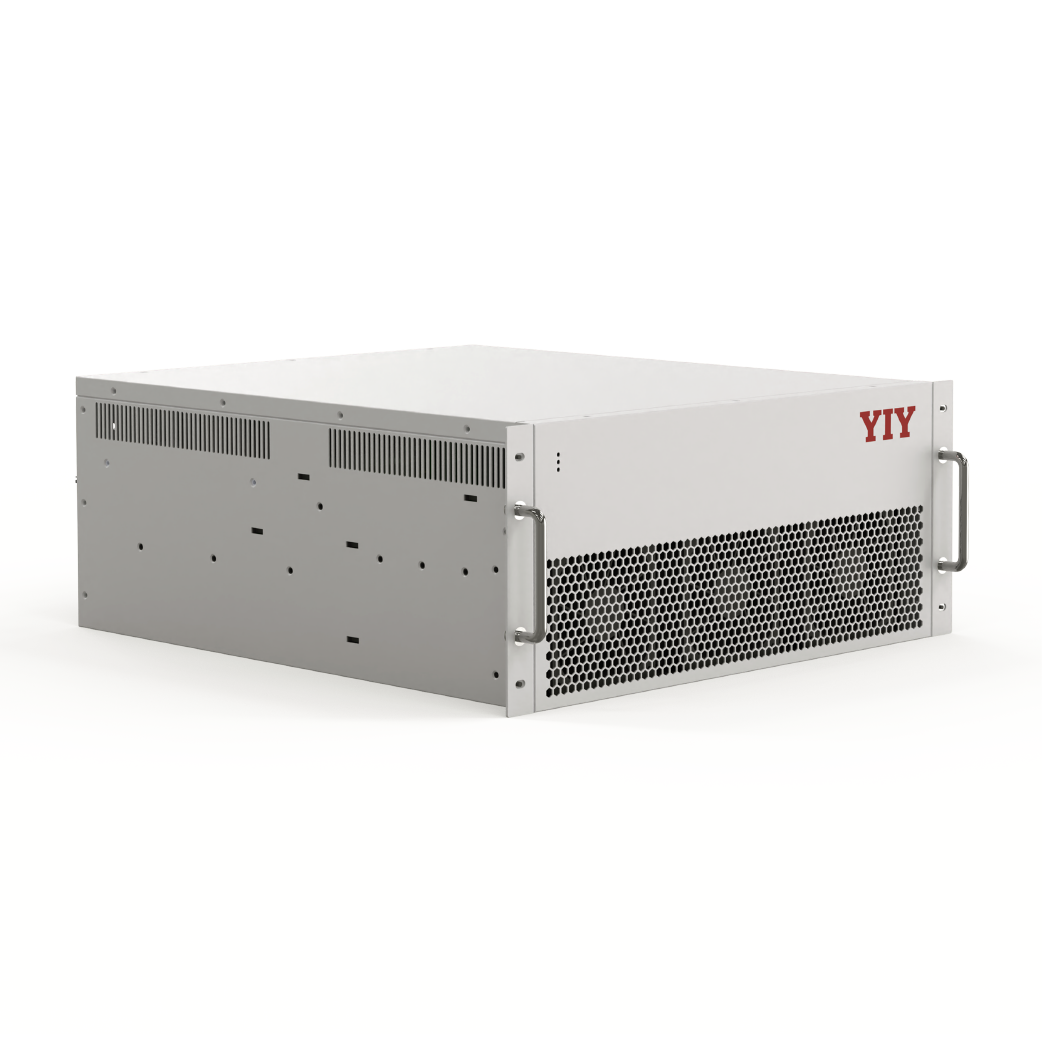

Power Conversion Module

UP-M Series

62.5KW/100KW

Bidirectional power conversion
four-quadrant operation
Support with EMS system
local control
Modular design

easy to maintain and expand

● DSP+CPLD fully digital control core, modular design, easy to maintain and expand ● Pure sine wave output, low current harmonic content, no pollution and no impact on the grid

● Dual AC and DC power supply to meet the requirements of black start mode ● Supports EMS local controller for intelligent energy control

● Bi-directional Power Conversion System ● Compatible with 19-inch rack for easy integration and installation

● Optional smart transfer switch for auto-backup ● Optional STS to achieve seamless switching between on-grid and off-grid

● Can be equipped with RS232/RS485, Ethernet and other communication interfaces to achieve remote data acquisition and monitoring

● Maximum efficiency can reach 97.3%

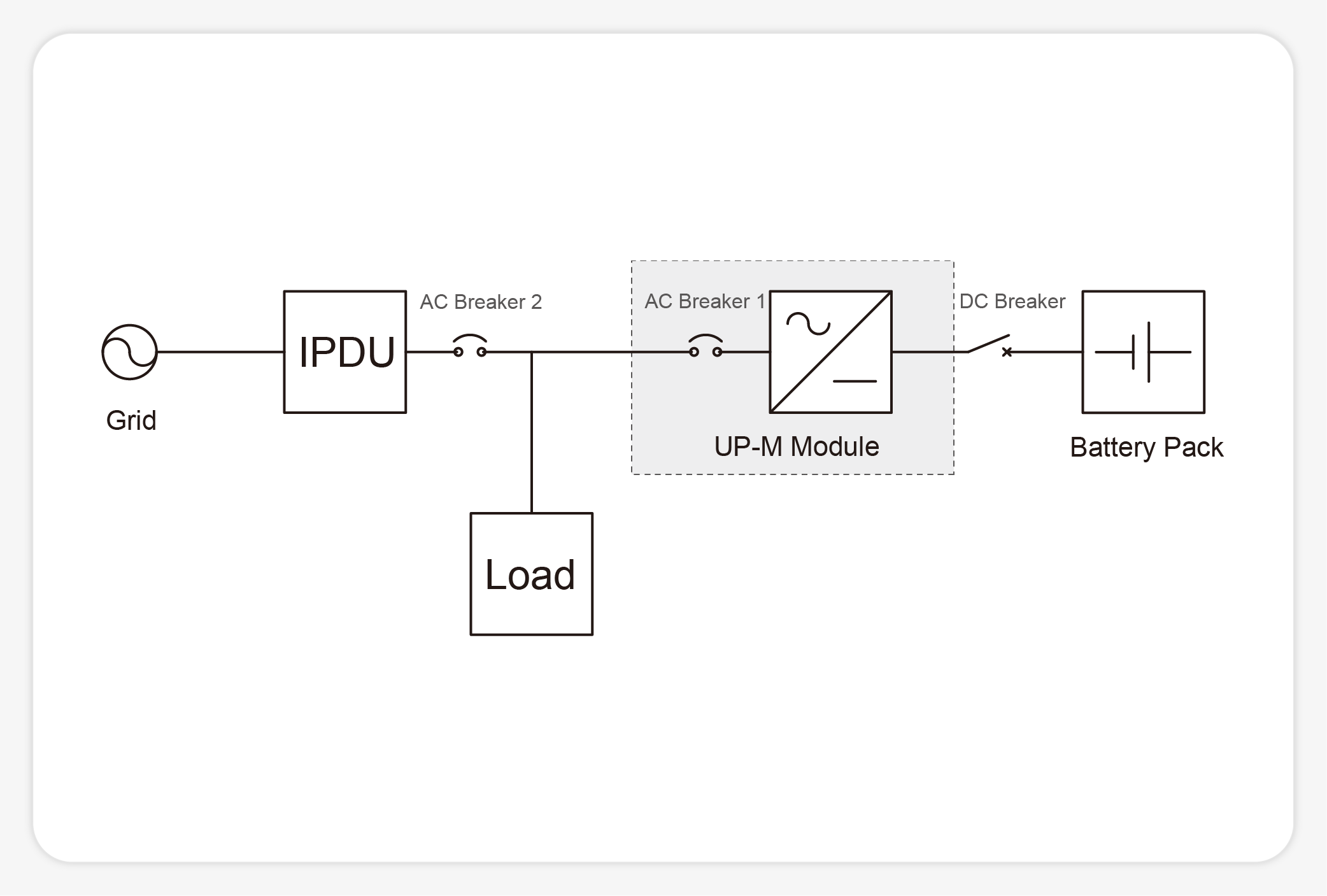

System topology

UP-M SERIES

UP-M series energy storage converter module adopts modular design, which can be used by a single unit alone or multiple units in parallel, with constant voltage, constant current and constant power control modes, and can be applied in industrial and commercial energy storage systems, with bidirectional (rectifier and inverter) as the basic feature, supporting grid-connected and off-grid operation, as well as reactive power compensation and harmonic compensation functions. It can meet the needs of different application scenarios and is flexible in terms of installation and use.
