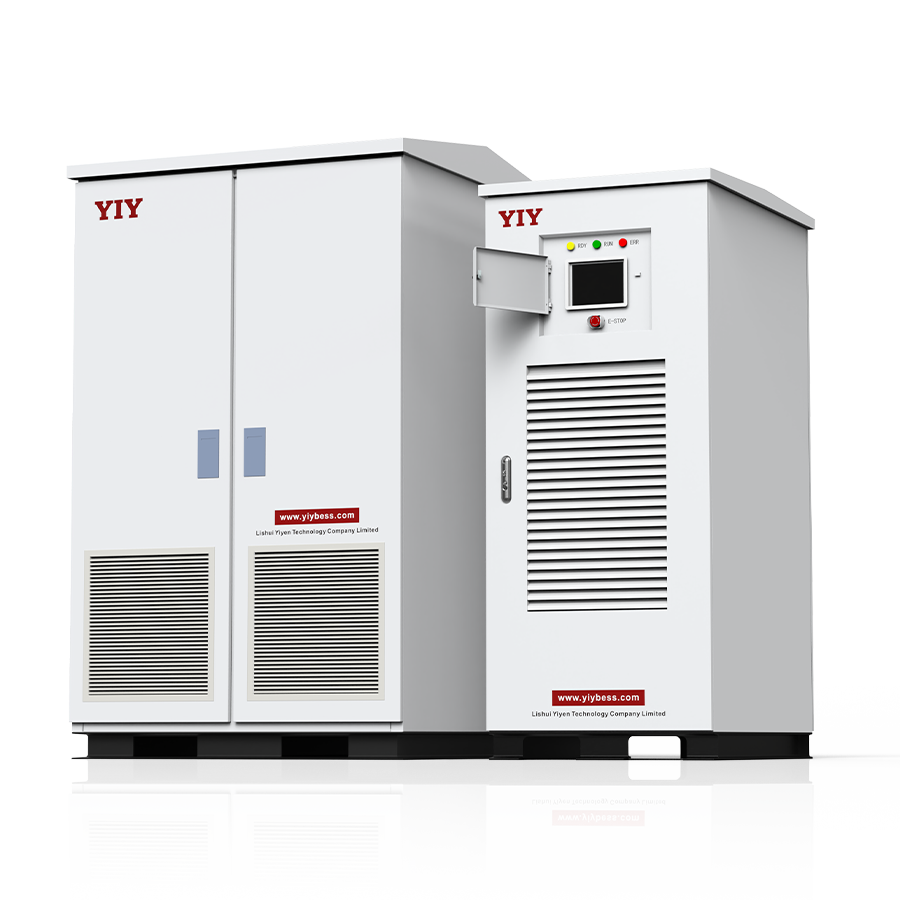

Three Phase

Power Conversion System

UP-S Series

62.5KW~1MW

Bidirectional power conversion
four-quadrant operation
Support with EMS system
local control
Modular design

easy to maintain and expand
Seamless switching between
on-grid and off-grid (optional STS)
Off-grid parallelism
black start function(optional )

● High stability, modular design support N+1 ● Bi-directional Power Conversion System

● Built-in transformer(optional ) ● Support self-generation, micro-grid application

● Supports on/off grid ● Photovoltaic can be connected to a maximum of twice the capacity of the device

● Dual—stage topology, wide battery voltage input range ● With MPPT function to enhance system power generation

● Self-contained solar storage operation strategy ● Support communciation with BMS, EMS system

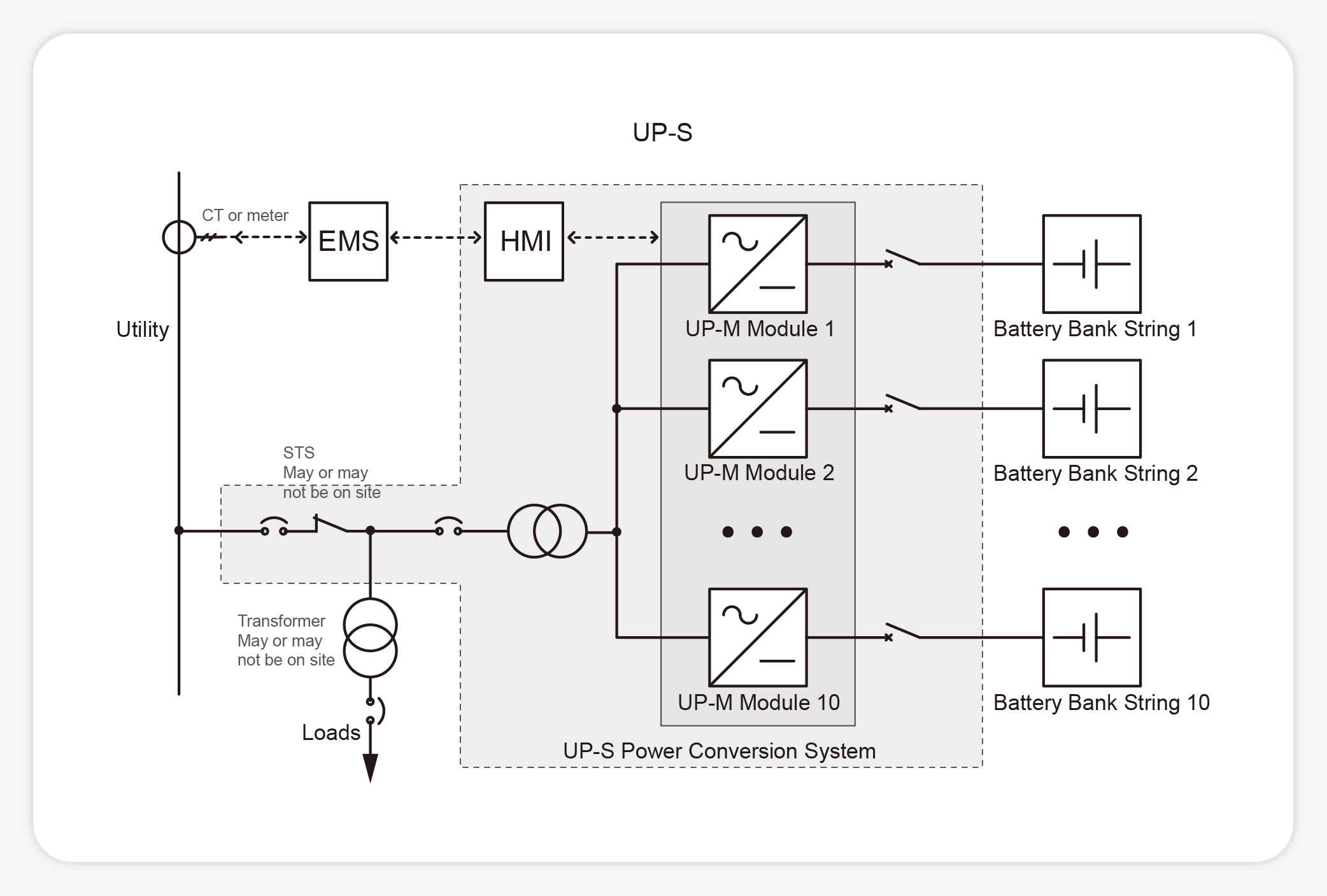

System topology

UP-S SERIES

UP-S series power conversion system mainly consists of AC distribution, transformer, energy storage AC/DC converter module, monitoring system, etc. With modular design, high integration, easy and flexible installation, modular splicing according to the actual application scenario, with constant voltage, constant current and constant power control, it can be applied to industrial and commercial energy storage systems, with bi-directional (rectifier and inverter) as the basic feature, supporting grid-connected and off-grid operation, and with reactive power compensation and harmonic compensation functions. It can meet the application requirements of different application scenarios.
