Three Phase

Solar+Storage Hybrid Inverters

UPV-S Series

50KW~250KW

Self-contained solar storage
operation strategy
Support with EMS system
local control
Modular design

easy to maintain and expand
Seamless switching between
on-grid and off-grid (optional)

● High stability, modular design support N+1 ● Bi-directional Power Conversion System

● Built-in transformer ● Support self-generation, micro-grid application

● Supports on/off grid ● Photovoltaic can be connected to a maximum of twice the capacity of the device

● Dual—stage topology, wide battery voltage input range ● With MPPT function to enhance system power generation

● Self—contained solar storage operation strategy ● Support communciation with BMS, EMS system

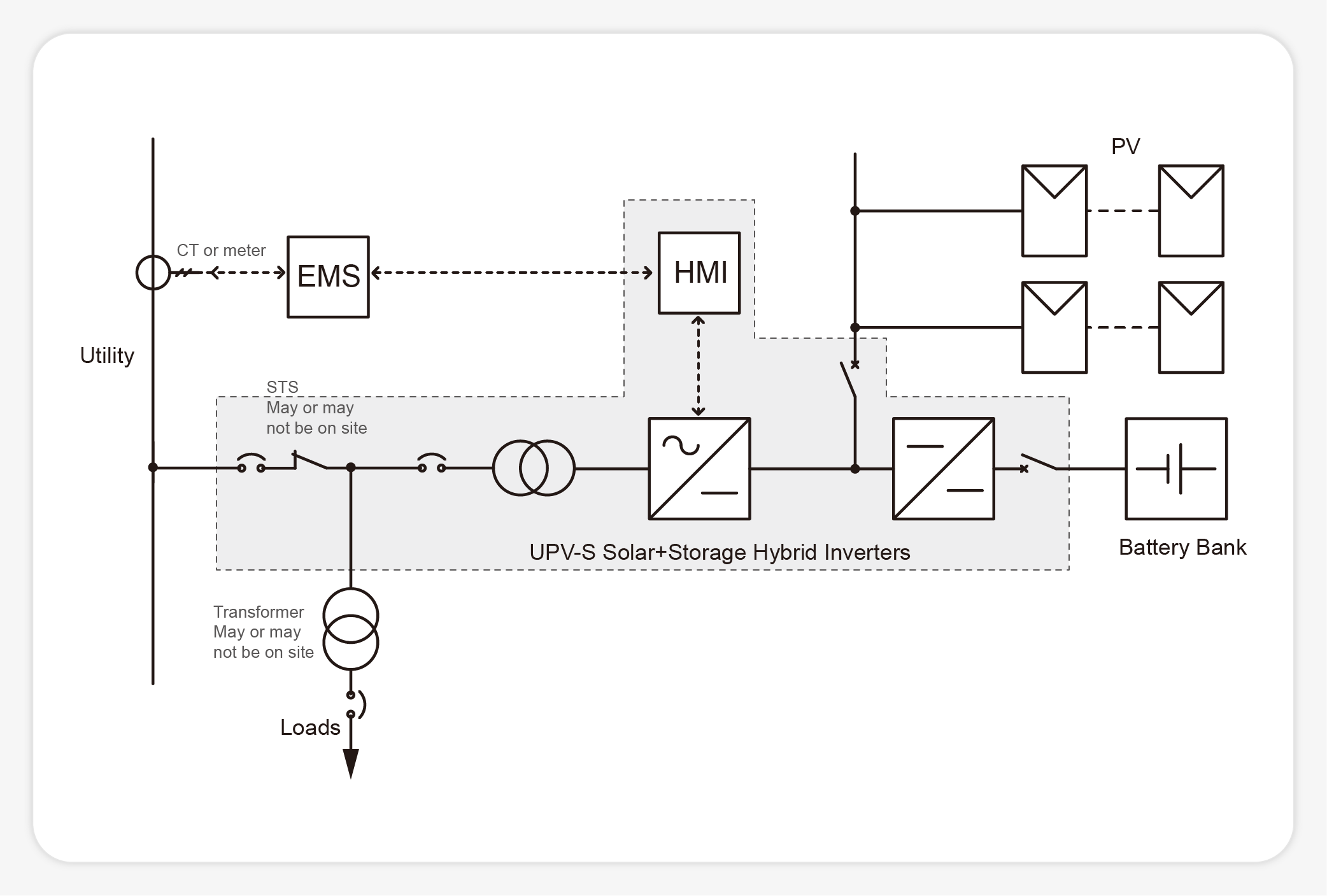

System topology

UPV-S SERIES

UPV-S series Bi-directional hybrid storage inverter is mainly composed of DC-AC inverter, DC-DC solar controller, AC power distribu tion, transformer, monitoring system,etc. It can be used in both on-grid and off-grid modes. It adopts modular design, high integration, convenient and flexible installation, which allows modular splicing according to actual application scenarios, and can efficiently use solar power to meet the application requirements of small and medium-sized micro-grid and industrial and commercial buildings.
