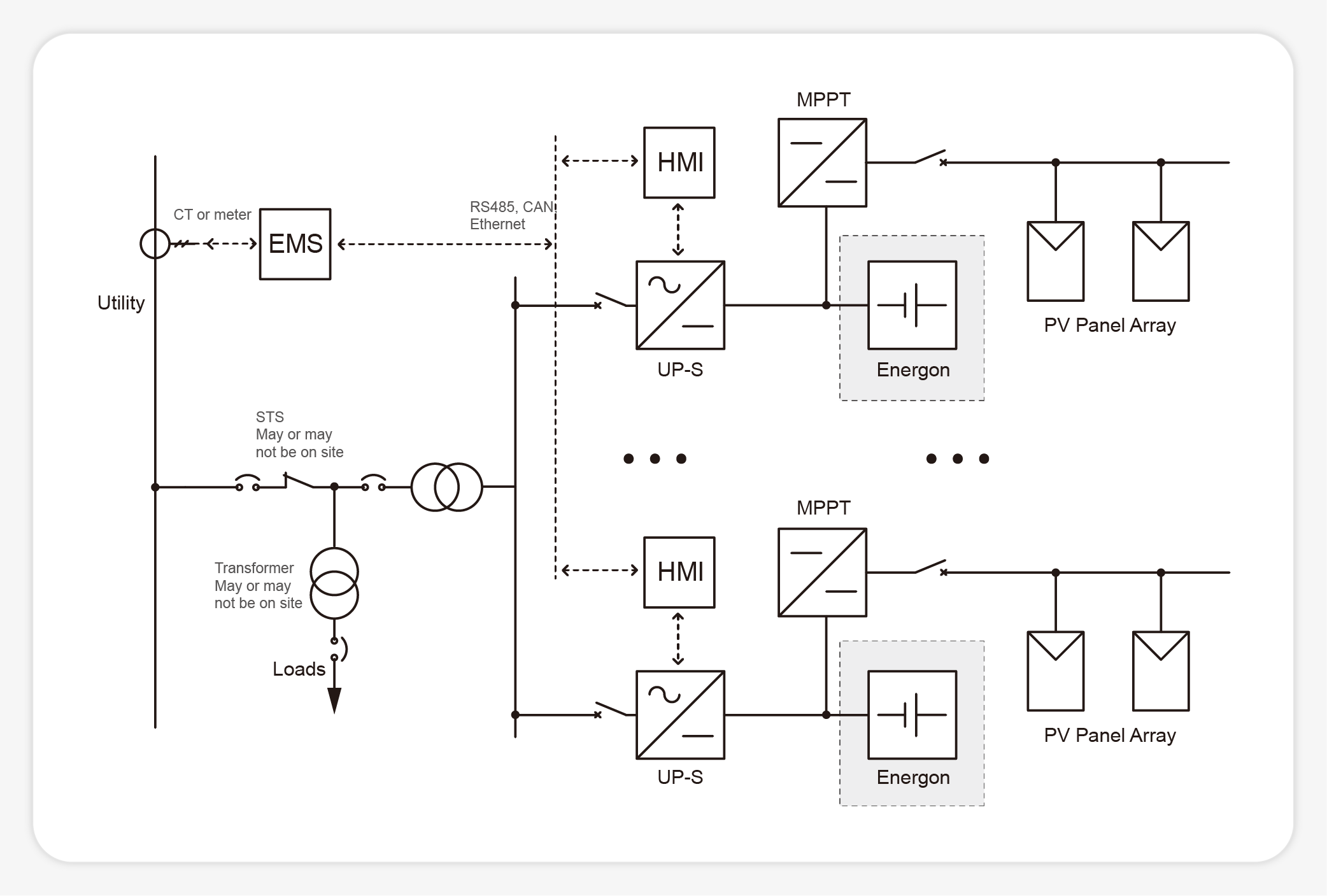

Support self-generationmicro-grid application -
Support with EMS systemlocal control -
Modular designeasy to maintain and expand -
Multiple protection forsafer use -
Supports cloud operationand maintenance
• Multi level BMS built-in.
• IP55 fire and explosion proof cabinet.
• Scalable in power and capacity.
• Easy for on site installation.
• Fire proof devices in each modular and in the cabinet.

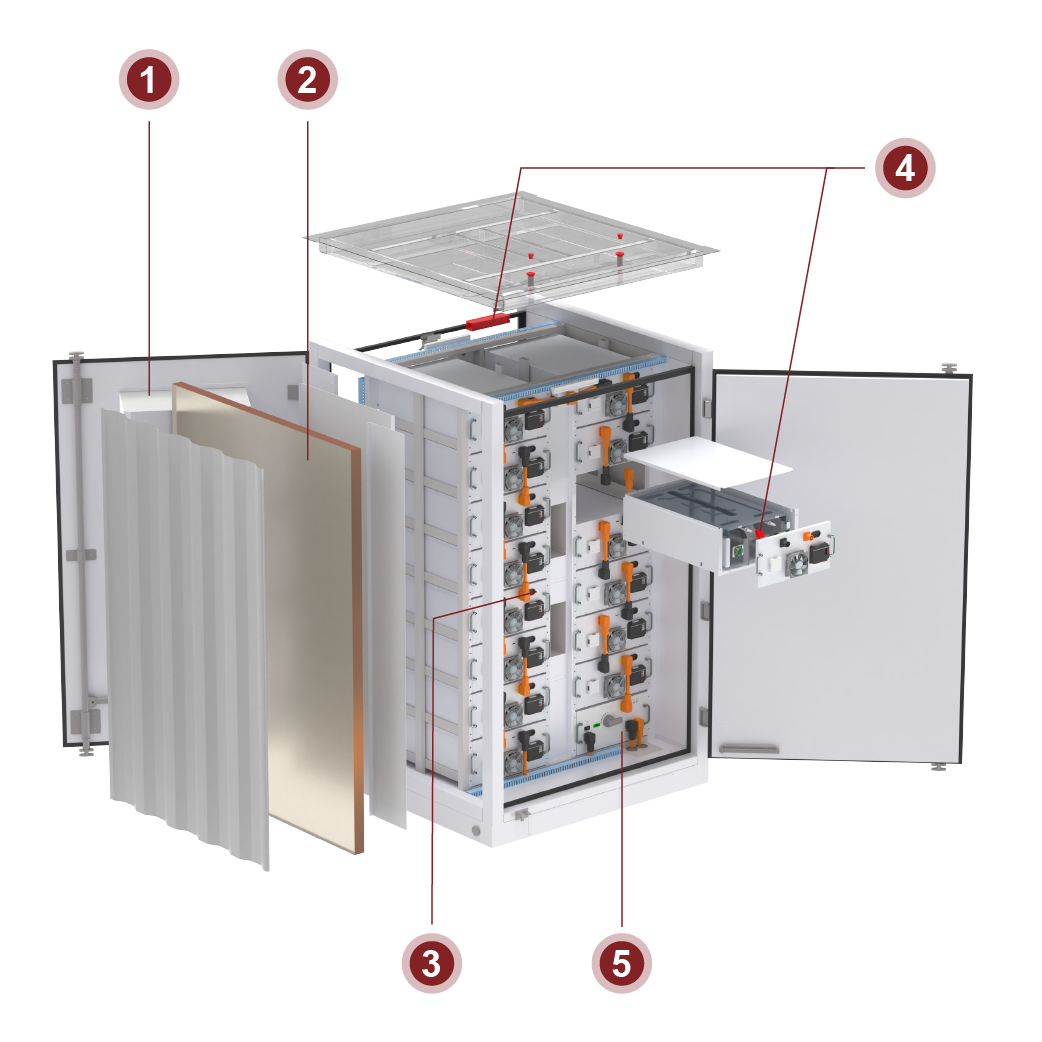

01

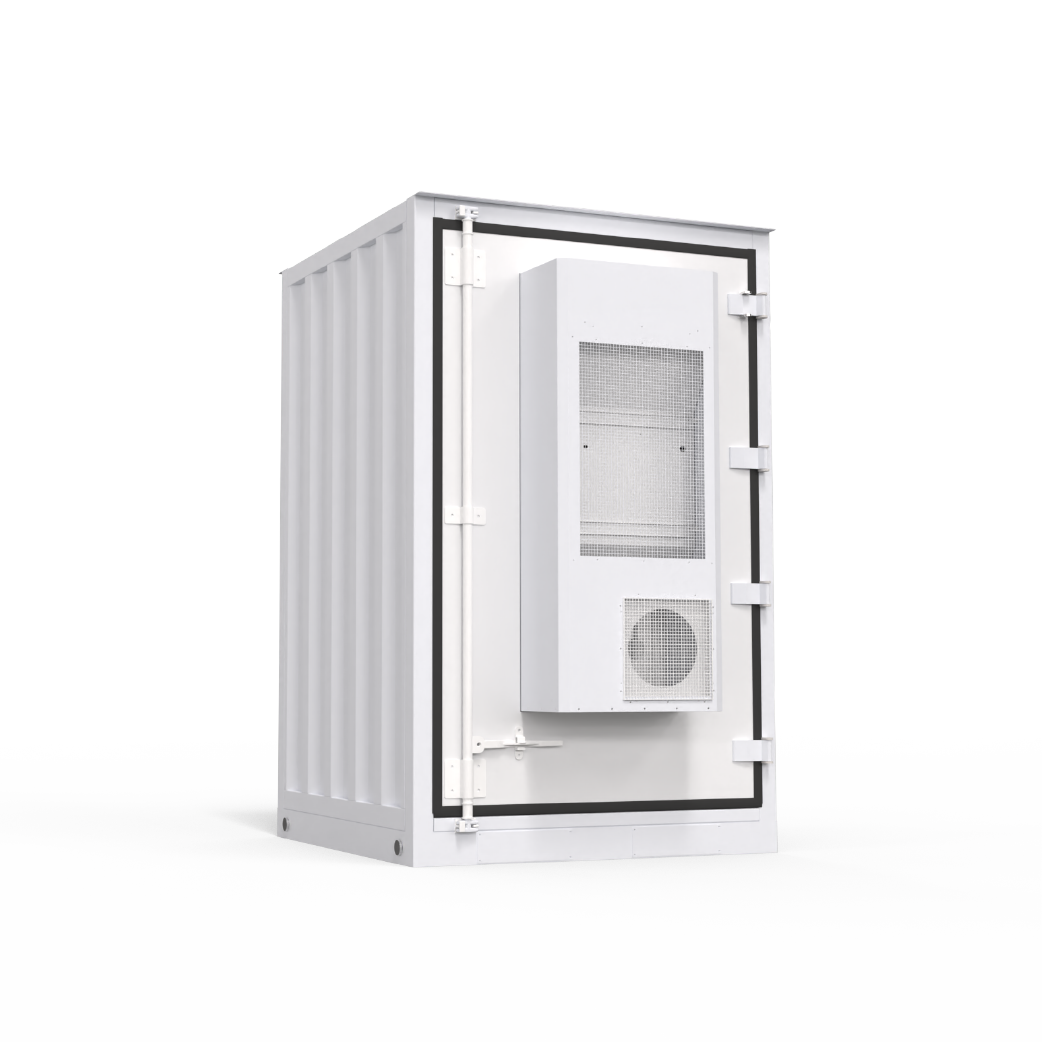

Air conditioning module
02
Explosion-proof insulation housing
03

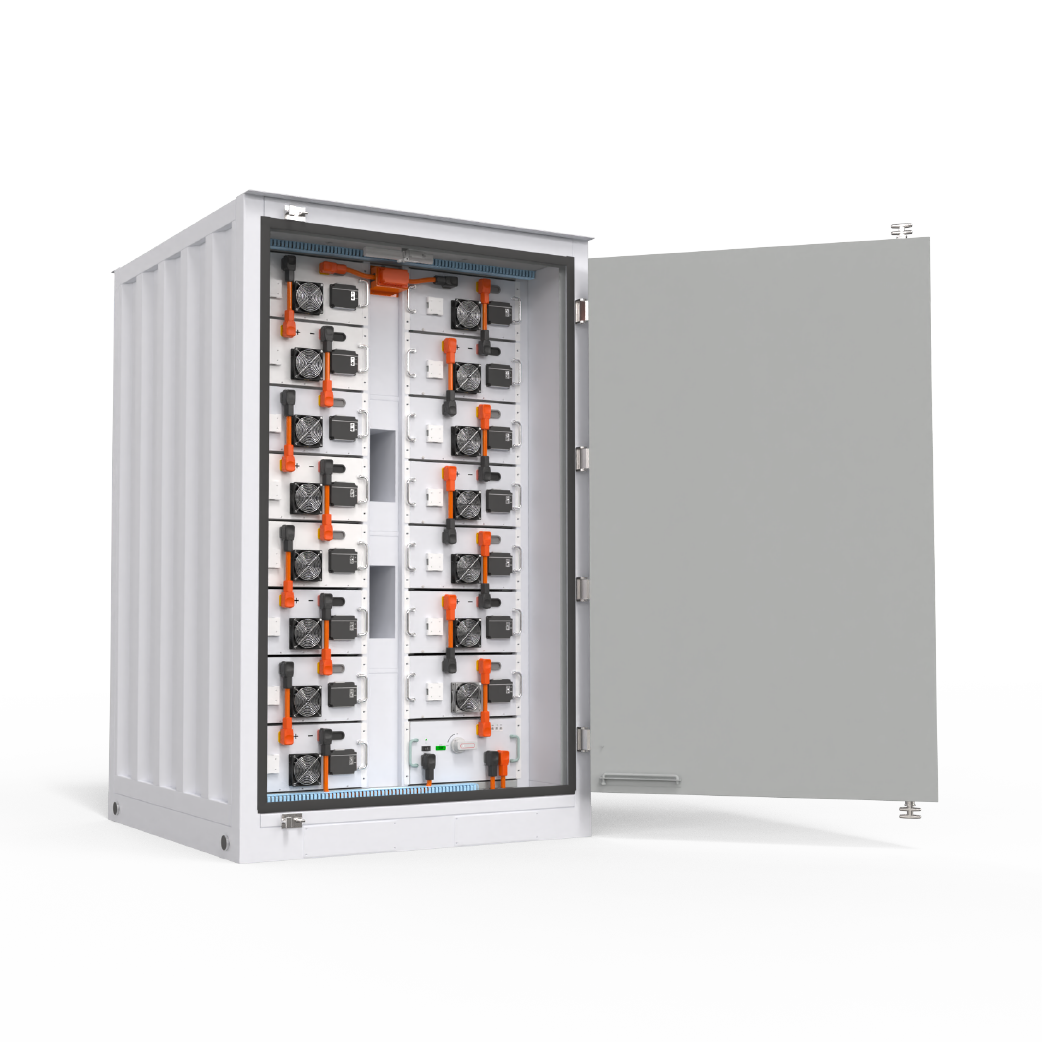

LiFePO4 Battery Pack
04
Fire control modul
05
BCU Battery Control Unit

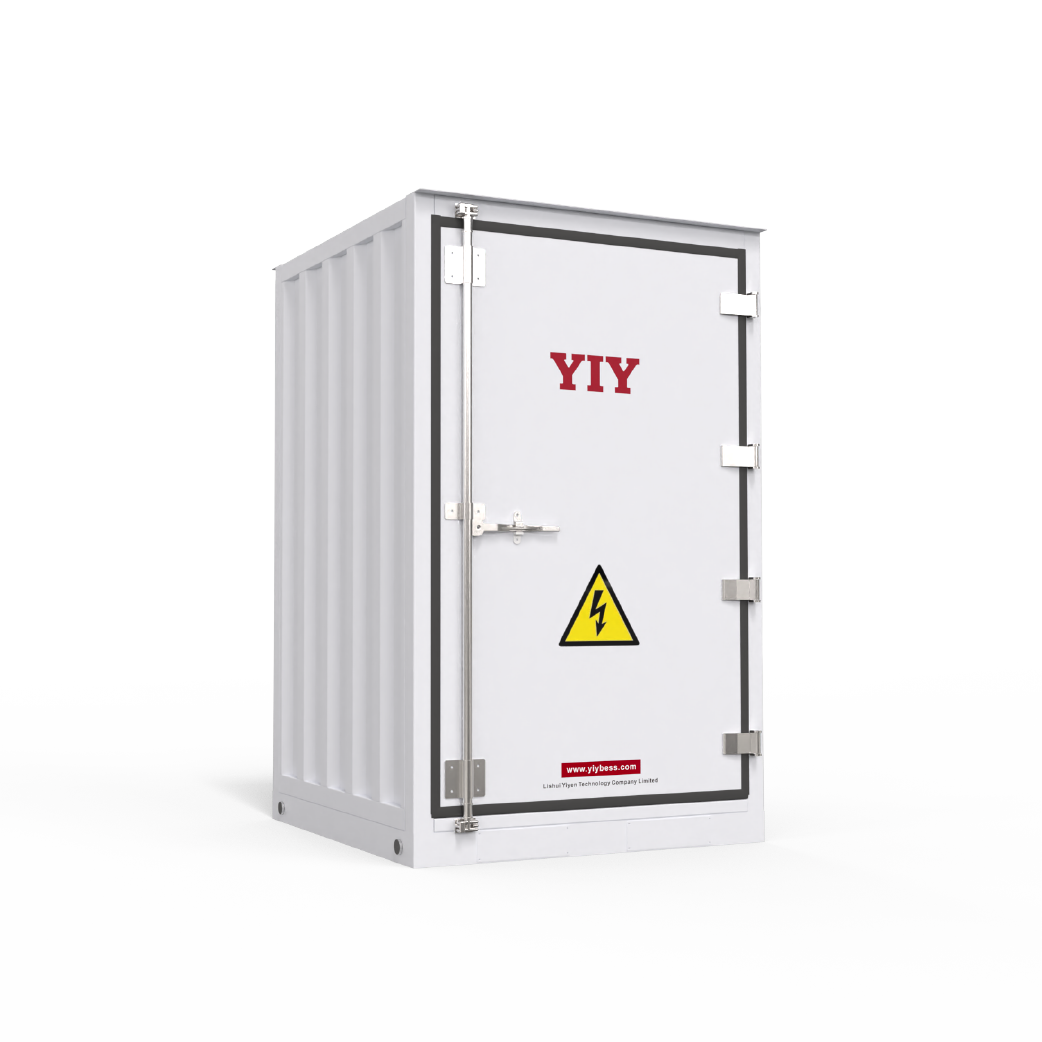

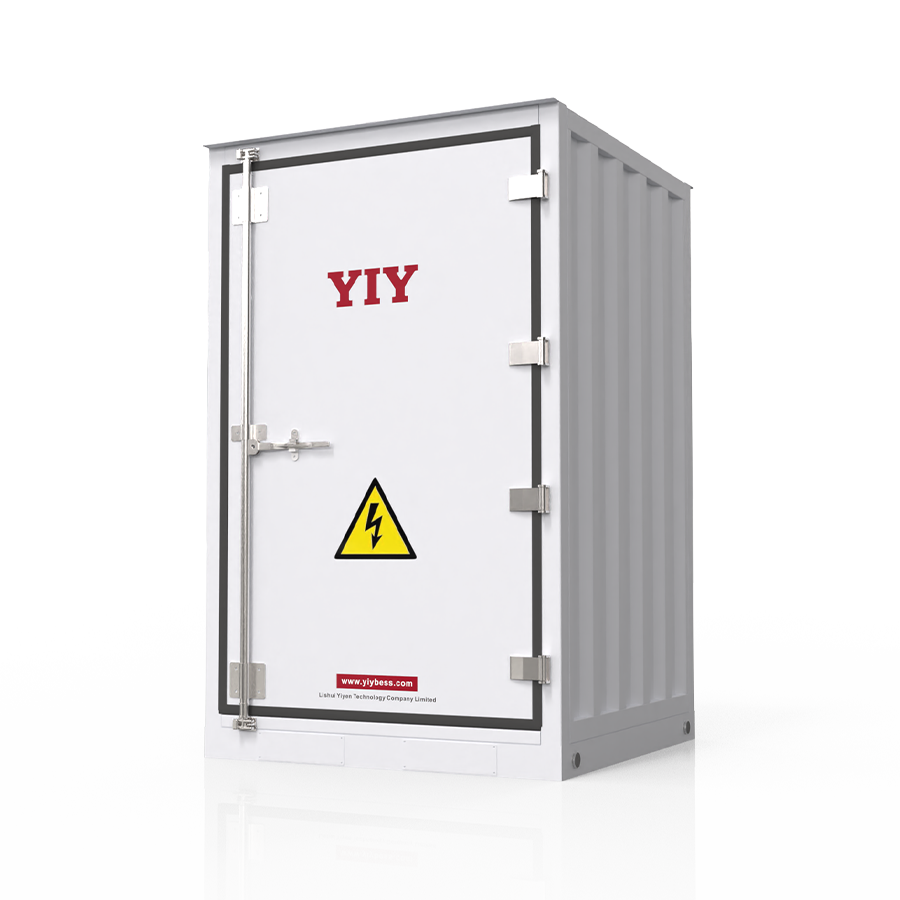

Energon SERIES
Energon series outdoor energy storage cabinet is a modular , flexible LiFePO4 battery system which can be scaled from 215KWH upto megawatts .It integrates battery cells, BMS, BCU ,anti fire protection, air conditioners into a IP54 outdoor cabinet. Energon enables users to reduce energy costs and generate revenue through EMS (energy management system) such as peak shaving and load shifting
010203
Total battery capacity : 215KWH/271KWH
DC nominal voltage : 768V/864V
Battery cluster : 768V 280AH/864V 314AH
Cell : LFP(LiFePO4) 3.2V 280AH/314AH
System voltage range : 672-852VDC/756-958.5VDC
No. of cycles : 8000cycles(70%SOH)
Protection class : IP55
